Road-mobile robotic printer

AMTG R1

Drives to the job site on its own wheels. No crane, no flatbed — the R1 relocates under its own power and starts printing.

Specifications

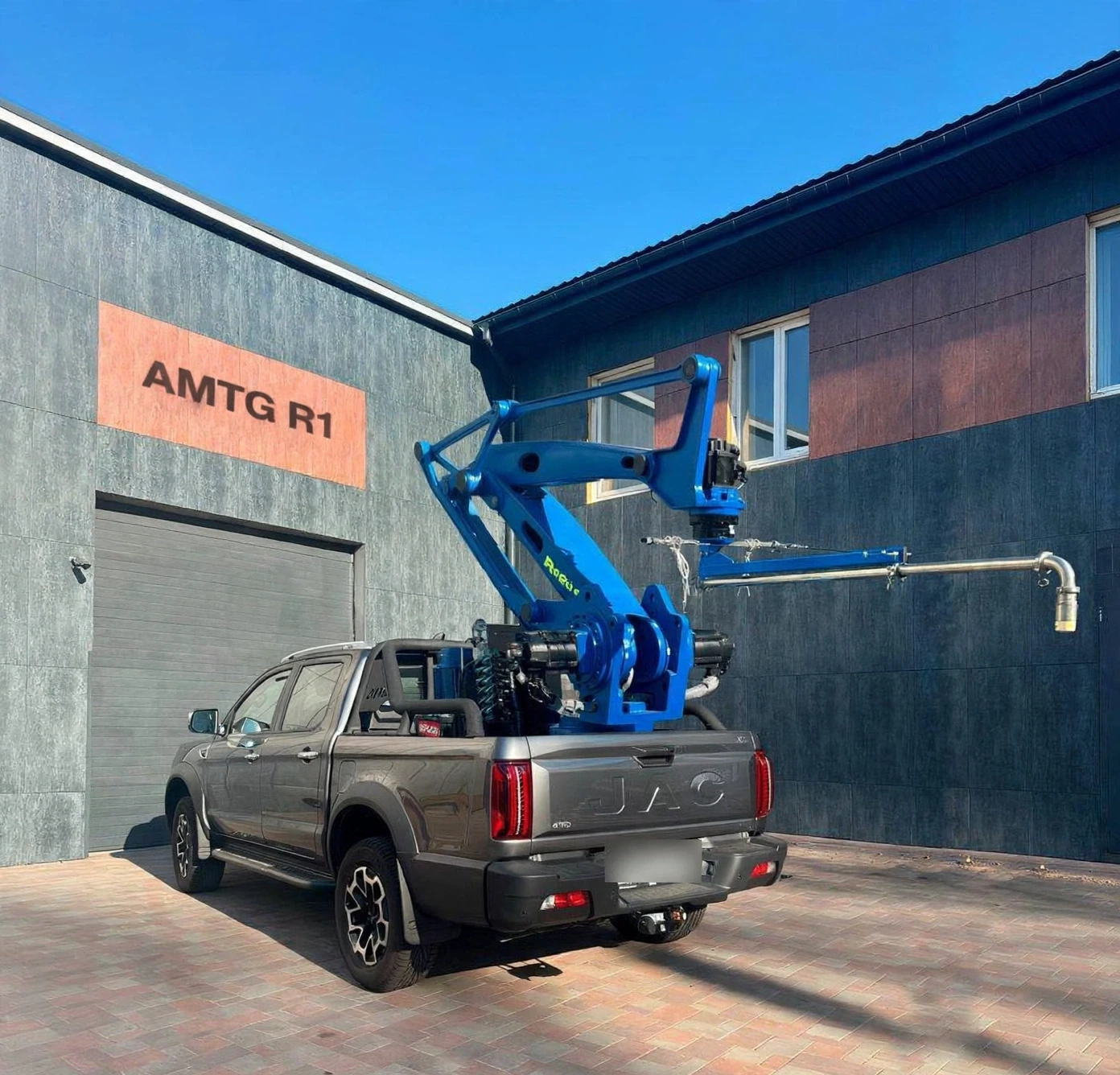

AMTG R1 robotic printer on JAC pickup truck
Price
From $360,000 (printer only) / $480,000 with pickup truck
Equipment type
Mobile robotic construction 3D printer
Base platform
Automotive chassis, pickup 4×4
Mobility
Wheeled, road-capable
Installation
Around / inside foundation
Primary application
Residential buildings, small architectural forms
Max. printing height
3.6 m
Max. printing area
140–160 m² (with repositioning)
Printing radius
Up to 4.3 m
Robotic system
AMTG MD130 robotic manipulator
Drive system
Servo-driven, multi-axis
Printing speed
1000–7500 mm/min
Extrusion system
Screw-based print head
Material feeding pump
Peristaltic
Material supply capacity
22 L/min
Printable materials
Cement-based mixtures ≤ 3 mm aggregate
Transport dimensions (L×W×H)
5330 × 1965 × 2800 mm
Operating dimensions (L×W×H)
5330 × 2800 × 3500 mm
Total weight
~4100 kg
Power supply
Vehicle diesel / onboard power
Terrain capability
Roads, prepared construction sites
Typical use case
Suburban housing, mobile deployment

The $480,000 package includes a standard pickup truck with the printer professionally installed. Buy the printer alone for $360,000 and mount it on your own truck to save.

Description

The AMTG R1 is a mobile construction 3D printing system mounted on a pickup truck chassis (4×4) and equipped with an MD130 robotic manipulator. Best suited for road-accessible sites, residential construction, and projects requiring high mobility between locations — the R1 drives to the job site on its own wheels.

Key Advantages

Road-mobile — relocates under its own power, no crane or flatbed needed.
High mobility between locations.
High positioning accuracy of the robotic manipulator.
Suitable for suburban housing and residential construction.
